Rxsol aluminium constructed pumps are commonly combined with Neoprene, Nitrile, Santoprene, Hytrel, Viton or PTFE Elastomers. With these elastomers they are ideal for pumping of water and water-based fluids, non-aggressive fluids, oily fluids and fluids having low acidic or alkali concentrations Aluminium Pumps offer a relatively low-cost solution to many pumping applications.
For this purpose, the main industries that choose Aluminium pumps are Paints, Marine, Mining, Ceramic and Wastewater/Pollution management.

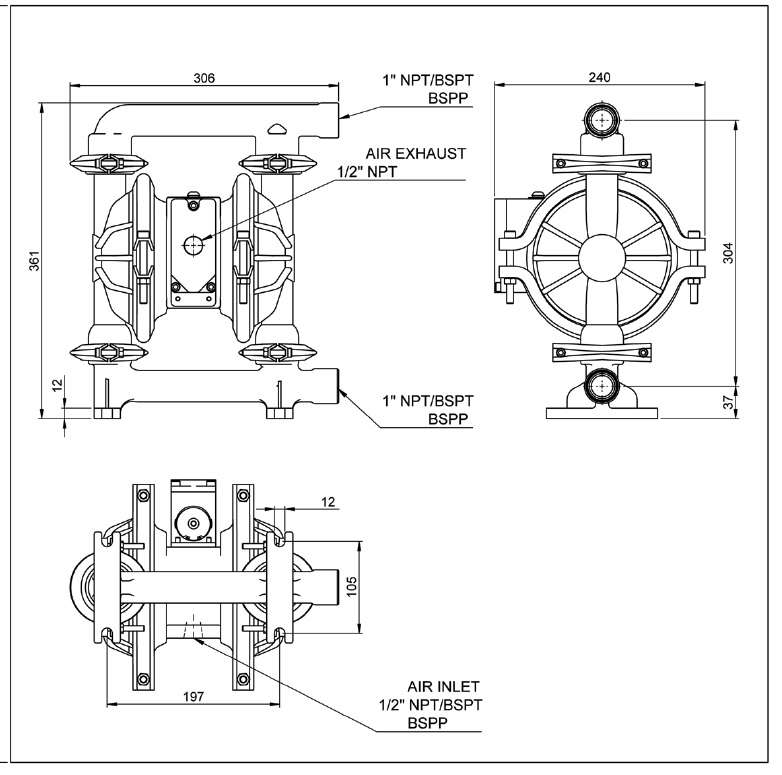

Dimension diagram
Technical Data
|
Nitrile / Santoprene / Hytrel / Viton fitments |
PTFE Fitments |
|
|
Maximum Discharge |
162 litres/min (43 US gallons/min) |
147 litres/min (39 US gallons/min) |
|
Suction Head Dry |
5.5 meters (18 feet) |
2.7 meters (10 feet) |
|
Suction Head Wet |
9 meters (30 feet) |
9 meters (30 feet) |
|
Pump Weight |
14.2 kgs (30.8 lbs) |
14.2 kgs (30. lbs) |
|
Max Solid Passage |
3.2 mm (1/8”) |
3.2 mm (1/8”) |
|
Air Distribution System |
SDP MaxFlo, MOC aluminium, acetal and CFT seals |
SDP MaxFlo, MOC aluminium, acetal and CFT seals |
|
Balls / Seals |
Santoprene or Hytrel or Nitrile or Neoprene or Viton |
PTFE |
|
Air Inlet |
1/2” NPT/BSPT/BSPP |
1/2” NPT/BSPT/BSPP |
|
Fluid Inlet, Fluid Outlet |
1” NPT/BSPT/BSPP |
1” NPT/BSPT/BSPP |
